Can dusty powder run on a multi-lane machine?

Dusty powder can be reviewed, but feeding, filling, dust control and seal-area behavior need project-specific checks.

Why does bulk density matter?

Bulk density changes how much powder fills a given volume and can affect auger calibration, fill stability and realistic output.

Is servo auger dosing always the right choice?

No. Servo auger dosing is commonly reviewed for powders, but the final route depends on sample behavior, fill range, flowability and cleaning requirements.

Can AIX PACK promise powder output or accuracy?

No output or accuracy promise should be made before sample, film, pack size and final configuration are reviewed.

Do we need to send samples?

Samples are recommended when the powder is dusty, clumpy, moisture-sensitive, low-density or tied to a tight fill target.

Powder behavior before machine selection

Powder multi-lane packing machine technical selection by powder behavior.

Powder flow, dust, clumping, bridging, density and seal contamination determine the feeding, dosing and test route before output is discussed.

Plan Powder Sample Testing Start Powder RFQ

Material: Behavior and sample status
Pack: Format, fill and seal target
Line: Output and handoff boundary

Multi-lane dosing assembly used for powder route review — Visible equipment defines configuration context. Final scope remains project-specific.

Protein powder material context — Visible equipment defines configuration context. Final scope remains project-specific.

01Powder behavior and risk map

Name the instability before choosing the feeder.

The risk map makes each powder condition visible without turning a generic material class into a performance guarantee.

Flowability

Poor flow can interrupt auger feed and lane balance.

Dust

Airborne powder can affect cleanliness and the seal area.

Clumping

Soft lumps can change feeding and dose consistency.

Bridging

Hopper geometry and agitation may control discharge.

Bulk density

Density changes alter auger calibration and fill volume.

Seal contamination

Drop timing and residue affect the usable seal window.

02Dosing route

Stabilize supply before multiplying lanes.

Auger selection is reviewed with powder supply, hopper geometry, agitation, bulk density and the target fill. The visible assembly does not establish accuracy or material fit.

Multi-lane powder dosing configuration context

01
Condition the supply
Record batch state, transfer, de-lumping and buffer feeding.
02
Match the auger concept
Review fill, density, screw, hopper and agitation together.
03
Balance the lanes
Confirm product head, calibration access and stable feed.
04
Write the test method
Define samples and acceptance conditions before claims.

03Forming and sealing

Protect the seal zone from powder residue.

Film, stick geometry, powder drop timing and cut-off must be reviewed together. Hardware context alone cannot prove clean sealing.

Multi-lane forming and sealing configuration for powder sticks — Repeated forming and sealing zones require a material-specific filling window.

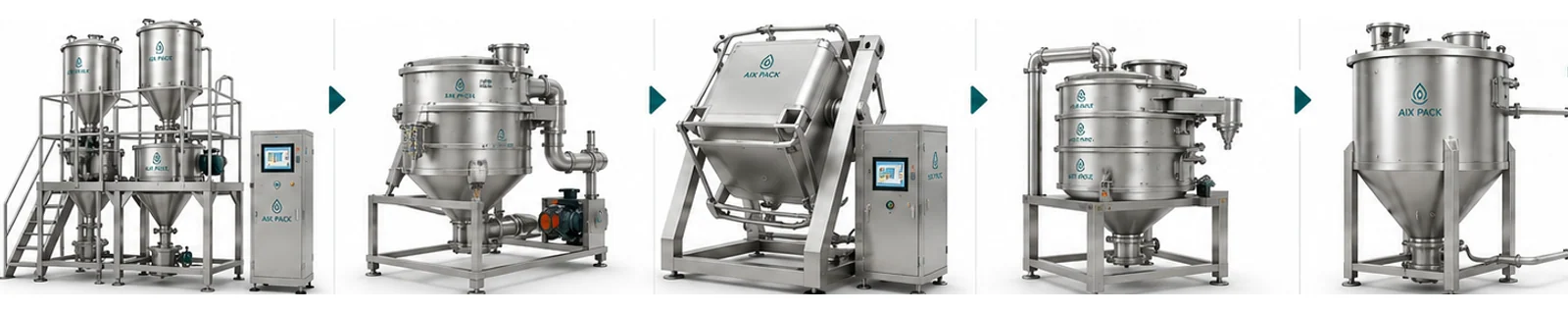

Powder preparation route before multi-lane dosing — Preparation route context; final equipment remains project-specific.

04Test and conditional specifications

Make evidence part of the specification.

Output, tolerance, lane count and cleaning language stay conditional until representative material and pack inputs support them.

Input	Required evidence	Decision supported
Representative sample	Production-relevant batch and sample condition	Observe flow, dust, clumping and moisture response
Fill target	Nominal dose and acceptable test method	Review auger, hopper and calibration concept
Pack and film	Dimensions, structure and seal window	Check drop path and seal-zone protection
Output goal	Required rate or daily target	Confirm only after stable filling and sealing review
Cleaning scope	Contact, changeover and containment expectation	Define access and product-contact boundary

04AGMP / cGMP documentation path

Turn powder risk into a documented acceptance plan.

For supplement and pharmaceutical-sensitive powders, the proposal can define the evidence path for product contact, cleanability, changeover, qualification and testing. The approved project record—not a generic badge—states what AIX PACK supplies.

Requirement	Project output	Evidence gate
Product contact & cleanability	Contact-part list, access and cleaning/changeover design review	Approved materials and project drawings
Contamination & seal protection	Powder containment, residue and seal-zone control points	Agreed risk review and sample/FAT observations
Qualification documents	Agreed URS response, DQ, FAT/SAT and IQ/OQ support scope	Document list frozen in contract
Project-specific results	Material, film, dose, output and acceptance results under stated conditions	Dated protocol/report with method and conditions

05Route reference

Use a public route reference as context, not a result claim.

Zhongjing Dali supports a powder stick pack discussion as a published route reference. It does not establish a fixed configuration, output or performance result.

Zhongjing Dali powder stick pack public route reference

Powder stick pack route context

Compare material state, stick target, sample requirement and line boundary. Do not copy an assumed machine or result from the image.

Review published route boundary See the real 8-lane powder Stick Pack demonstration

06 / Next action

Uncertain powder should move to testing first.

Share material behavior, sample status, fill target, pack and output goal. A clear project can proceed to RFQ; an unstable or unknown powder should begin with sample review.
