Review a real multi-lane stick-pack-to-carton workflow, then define accepted-pack output, counting logic, carton format, interfaces and acceptance requirements.
Scene transcript: Owned Guangdong Kinghanlong complete-line footage used as AIX PACK engineering evidence begins with downstream and whole-line equipment context, then shows the multi-lane primary machine, its forming and discharge area and parallel channel-handling hardware. The clip does not show a confirmed stick-insertion cycle and does not establish a model, speed, count accuracy, standard module list, customer project or production result.
The owned recording supports physical context and an engineering discussion. Model, output, standard scope and project-result claims remain outside the evidence.
The sequence helps buyers identify the interfaces that must be assigned and accepted for their own packs and cartons.
Visible physical context before accepted packs enter downstream handling.

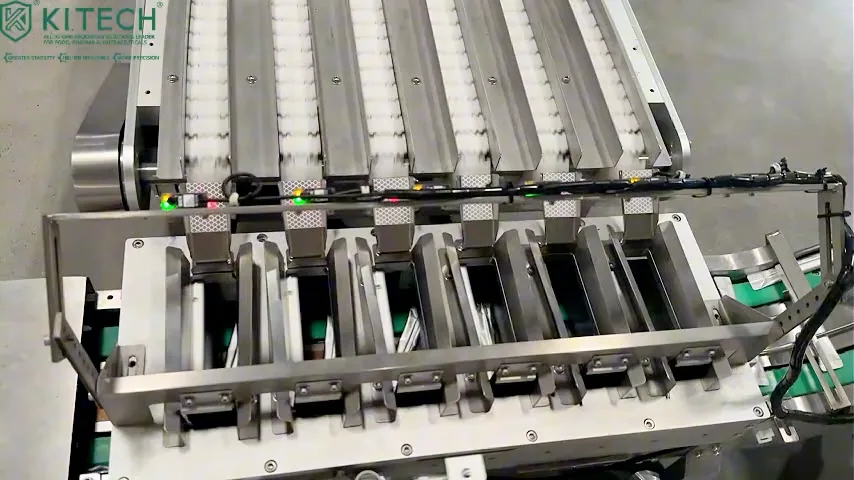

Visible separation and sensor hardware; no count-accuracy claim.

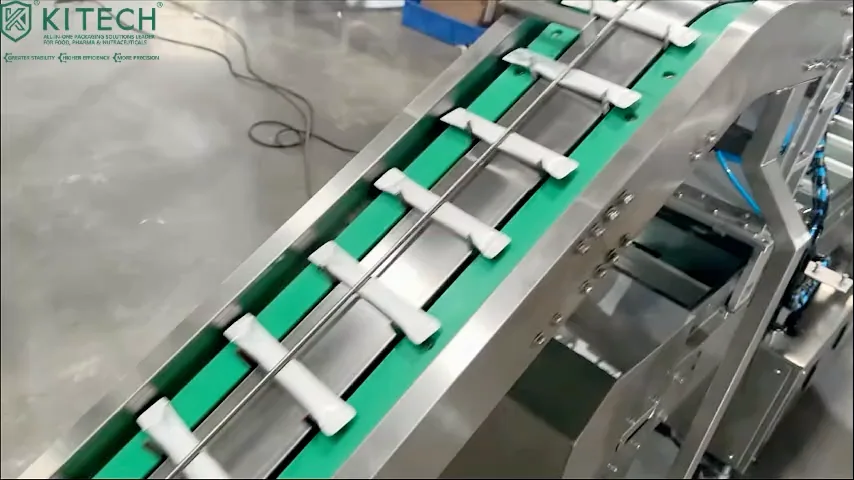

Visible narrow packs moving through the physical downstream handoff.

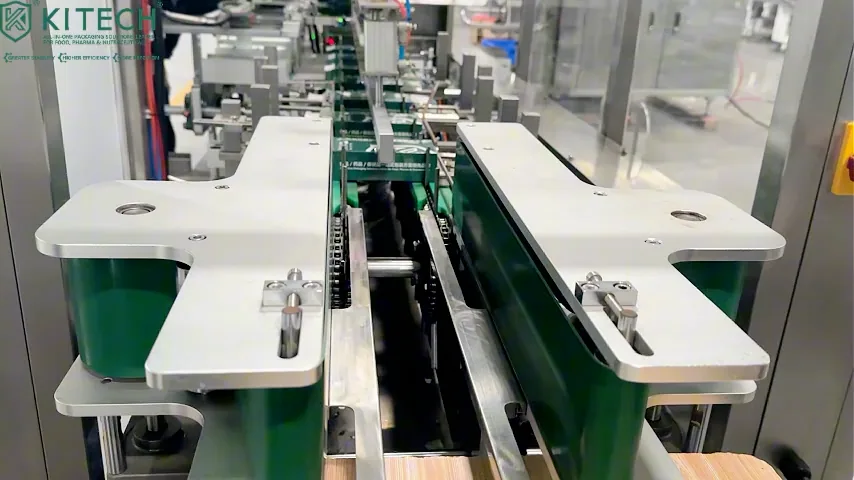

Visible cartoning-equipment context; no confirmed stick-insertion claim.
A physical carton containing multiple narrow packs, not confirmed automatic output or a fixed count.

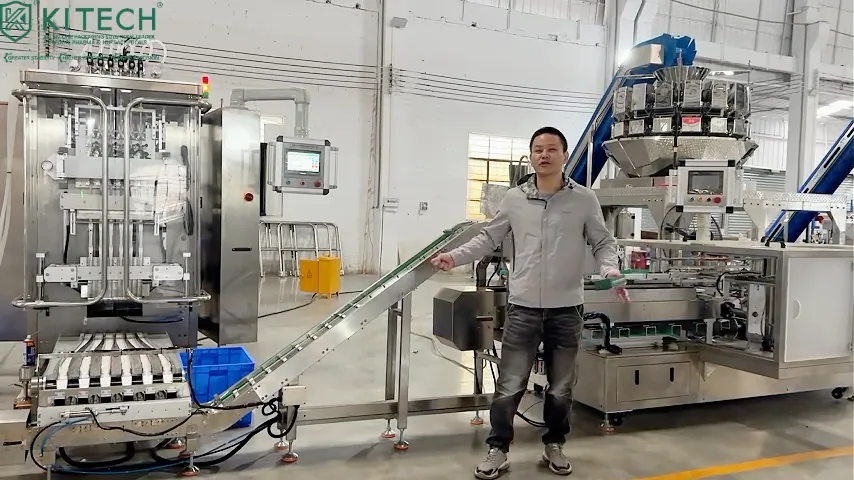

The derivative opens on real downstream and whole-line equipment context.
The view connects the multi-lane primary machine with the downstream route.
The camera moves through forming, sealing and discharge-area physical context.
Parallel rails and sensor hardware are visible without establishing counting logic or accuracy.
The matrix prevents visible hardware from being mistaken for a finished project specification.
A downstream review begins with the accepted stick leaving the primary machine, not with a generic cartoning promise.
Stick length, width and thickness
Seal geometry and opening features
Surface and friction behavior
Pack rigidity and weight
Required orientation
Primary-machine discharge pattern
Accepted-pack definition
Representative drawing or sample
A credible line basis connects upstream stability, group and carton conditions, recovery and inspection instead of publishing an unsupported number.
Stable accepted output from the upstream stage
Required count and orientation per carton
Target carton-output basis
Buffer, stop and recovery needs
Inspection and reject rules
Shift and acceptance basis
Drawings, representative samples, layout and named interfaces make the review specific without inventing a standard configuration.
Carton style, drawing and representative sample
Dimensions and tolerances
Board and closure method
Count and orientation requirement
Coding and inspection need
Layout and elevation
Site utilities and access
Third-party modules
Named interface responsibilities
Accepted carton condition
Equipment visible in the footage is not automatically standard included equipment. The approved project scope decides supply, integration and acceptance responsibility.
Equipment expressly assigned to AIX PACK in the approved project scope.
Interfaces, controls and engineering work expressly assigned to AIX PACK.
Named external equipment with an agreed interface owner and test boundary.
Packs, cartons, drawings, site conditions, utilities and decisions assigned to the buyer.
Each answer keeps real evidence, configuration and acceptance in their correct boundary.
No. It proves a real demonstrated workflow and visible equipment context. The final modules, interfaces, layout and responsibilities are confirmed in the approved project scope.
No fixed output is established by this footage. The project basis depends on stable accepted-stick input, the slowest confirmed stage, carton and count conditions, buffer logic and acceptance testing.
No. Transfer, separation, counting, inspection, rejection and cartoning are included only when the written scope assigns the equipment, interfaces and responsibility.
Send accepted stick samples or drawings, discharge pattern, count and orientation per carton, carton samples or drawings, target line basis, inspection needs, layout, utilities and any third-party interfaces.
That requires engineering review and, where needed, testing with representative packs and cartons. The video does not establish compatibility with an unreviewed product or carton.
Accepted-pack drawing or sample · Count and orientation per carton · Carton drawing or sample · Stable upstream basis · Target line basis · Inspection and reject needs · Layout · Integration responsibility
